TRYTON Smith Machine 3D with Double Lift and Stack HMS
TRYTON Smith Machine 3D with Double Lift and Stack HMS
Couldn't load pickup availability
Share
The Tryton by HMS Fitness is an advanced training atlas designed for commercial use, which stands out for its ultramodern features such as the 3D Smith crane. This device is designed to meet the expectations of the most demanding users and offers a wide range of training possibilities.
Smith Crane 3D - Full freedom of movement
The innovative 3D Smith Crane from Tryton is a solution that takes classic exercises to the next level. Unlike traditional models that only move vertically, the 3D Crane allows for both up and down movements as well as forward and backward movements. This allows the user to move more naturally and functionally, activate more muscles and improve coordination and stability during training.
Double lift
The Tryton features a 2 x 90kg double stack lift, with 21 adjustable handle heights. This allows users to fine-tune the lift settings to suit their needs, allowing them to perform a variety of upper and lower body exercises. This flexibility makes the atlas ideal for an overall full body workout.
Multifunctionality
In addition, the Tryton has a pull-up bar with various grip options for versatile back, shoulder and abdominal muscle training. Four loading pins allow for convenient storage of the weights, keeping the training area tidy. The ease of use and practical solutions make this overhead crane an indispensable tool in any training room.
Safety at the highest level
Thanks to its robust construction and innovative solutions, the Tryton guarantees complete safety, even during intensive training. The safety supports on the 3D Smith crane increase the security, and the precise system of hanging the barbell on 12 hooks ensures ease of use. The stability of the device and the attention to detail make the Tryton the ideal choice for fitness clubs that focus on quality and modernity.
Specifications:

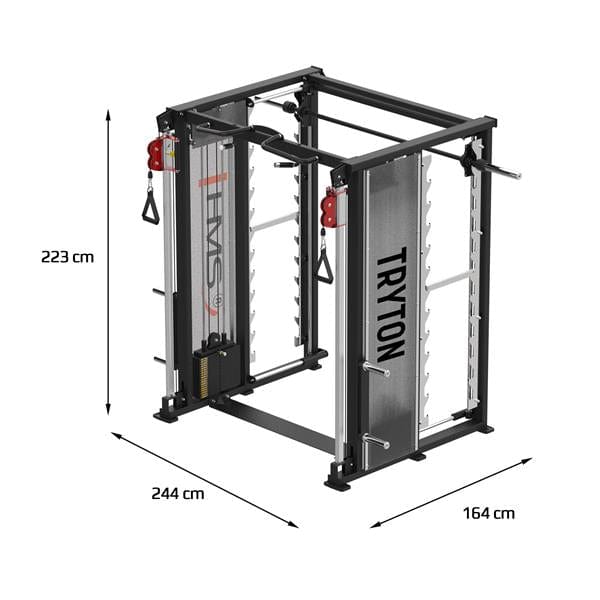

Dimensions
- Length: 164 cm
- Width: 244 cm
- Height: 223 cm

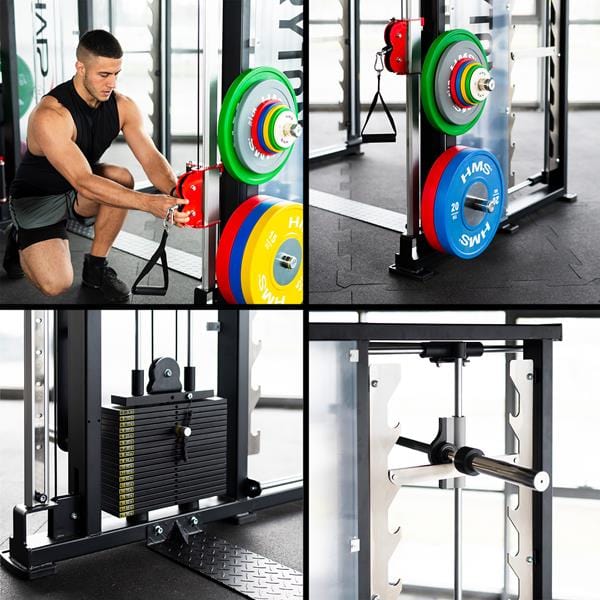

Stacks
- 2 x 90 kg
- Adjustable in steps of 5 kg
- Bolts for storing weights
- Length: 20 cm
- Diameter: 5 cm
- Quantity: 4
- Maximum load per pin: 100 kg
Griffin
- Diameter of the loading area: 50 mm
- Maximum load: 300 kg
- Number of locking hooks: 12
Pull-up bar
- Length: 104 cm
- Diameter: 3.5 cm
- Adjustment of pull: 21 degrees
Main profiles:
- 100x50x3 mm
- Distance between frames: 152 cm
- Maximum user weight: 150 kg
- Cable ratio: 1:2
- Total cable length: 842 cm
- Material: Q235 steel
- Weight: 520 kg
Notes:
- Warranty 24 months for home use
- Warranty 12 months for commercial use
