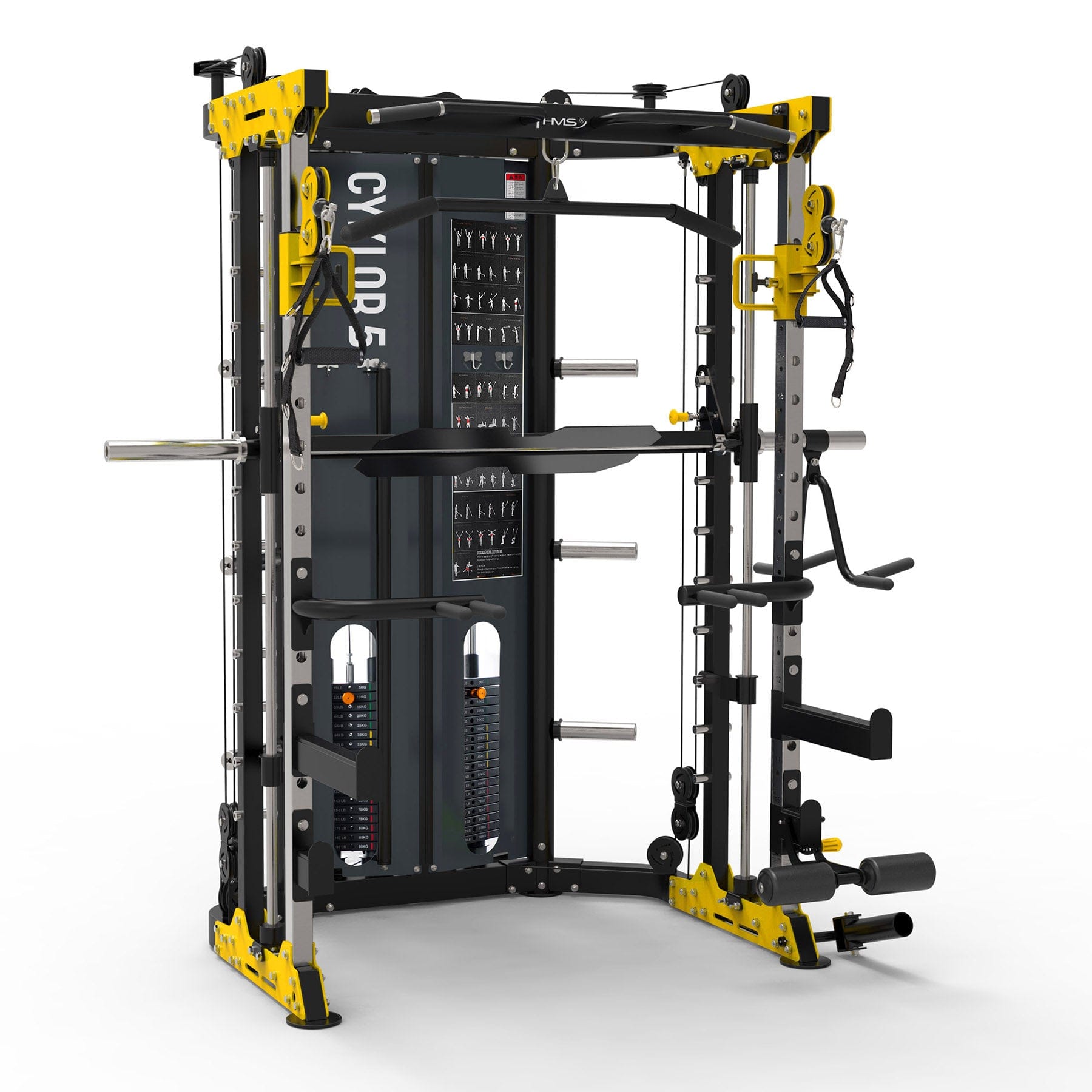

Cyklop 5 Smith Machine

The CYKLOP 5 from HMS is an advanced multi-station that combines the functions of a multi-station and a Smith machine in one compact design. With two independent weight stacks of 90 kg each, a built-in barbell, adjustable pulleys and numerous accessories, this machine offers a complete full-body workout - from upper body to legs.

The CYKLOP 5 is designed for users looking for uncompromising quality, safety and maximum functionality. Perfect for gyms, PT studios and demanding home users.

Key Features:

- 2 x 90 kg weight stacks – smooth-operating pulleys with a 1:1 cable ratio for even load distribution.

- Smith machine with integrated barbell for safe squats, bench presses and more.

- Bar lock – extra safety during solo training.

- Leg press plate – turns the machine into a full-fledged leg press.

- Safety supports – for extra security during heavy lifts. Also usable for deadlifts.

- Dip bar & pull-up bar – with multiple grip options for chest, back and triceps.

- Landmine grip – for rotational training and functional lifts with Olympic barbell.

- Adjustable thigh fixation – for stable pulley exercises.

- 6 weight plate holders – keeps space organized.

- Multiple accessory hooks – quick access to handles, ropes and straps.

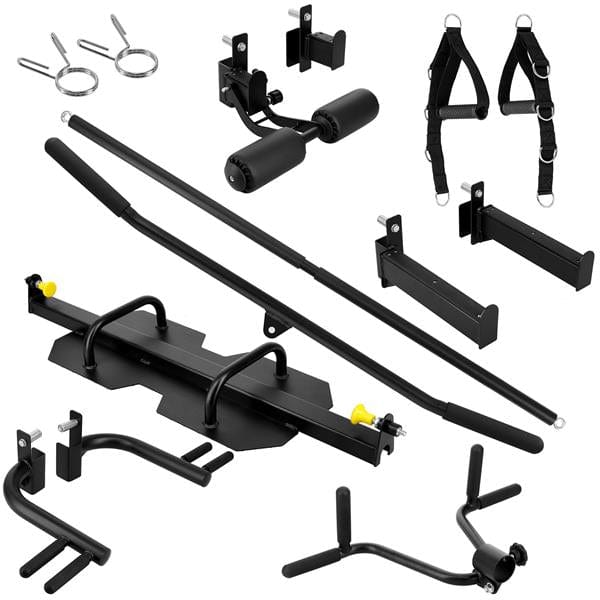

- Included handles – including straight bar, adjustable single handles, triceps rope, and clips.

- Includes exercise poster – with inspiration for pulley exercises.

---

Specifications:

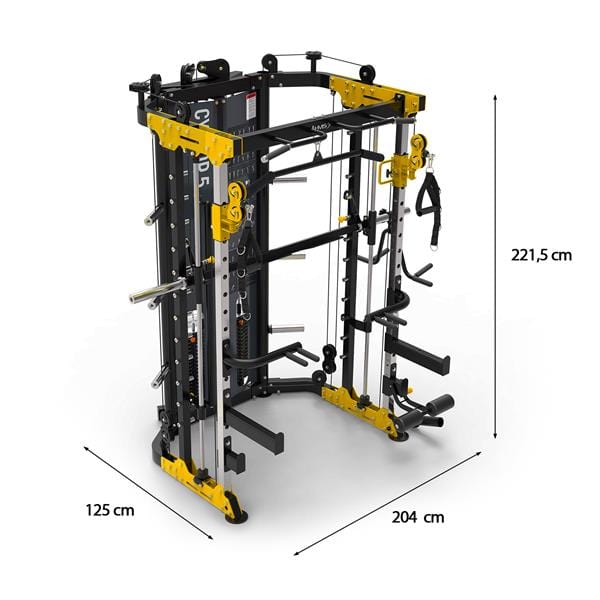

- Dimensions : L 125 cm x W 204 cm x H 221.5 cm

- Distance between profiles : 122 cm

- Weight stacks : 2 x 90 kg (adjustable per 5 kg)

- Barbell bar : 204 cm long, grip Ø 30 mm, max. load 500 kg

- Pull-up bar : 109 cm wide, grip Ø 25 mm (with foam: 31 mm)

-Safety supports : 39 x 5 cm, max. load 1000 kg

- Dip bar : grip Ø 31 mm

- Leg press plate : 75 x 34 cm, max. user weight 500 kg

- Cable ratio : 1:1

- Total cable length : 27,990 mm

- Weight storage pins : 6 pieces, Ø 50 mm, length 18 cm, max. 400 kg per pin

- Pulley & accessory height adjustment options : 16 positions (every 9.5 cm)

- Frame : 50 x 50 mm

- Total weight of the device : 400 kg

Warranty:

- 5 years on the frame
- 2 years on the device
- 1 year on cables and bearings
